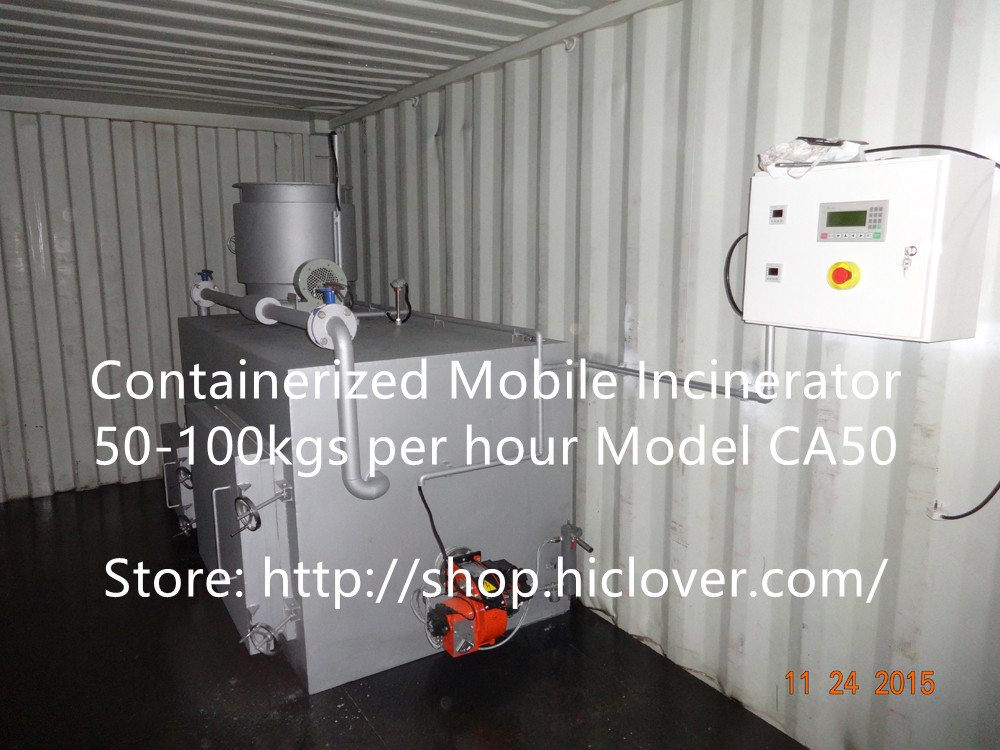

Containerized Mobile Incinerator 50-100kgs per hour Model CA50
Medical Waste Incinerator 50-100kgs per hour capacity
Model: CA50 Oil, delivery with 20′ ISO Container(Ave.70%new 2nd hand)
Burn Rate (Average) 50-100 kg/hour
Feed Capacity(Average) 100-200kg/feeding
Control Mode PLC
Combustion Chamber 560L
Internal Dimensions 100x80x70cm
Secondary Chamber 280L
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 220V
Power 0.7Kw
Oil Consumption (kg/hour) 16
Temperature Monitor Yes
Temperature Protection Yes
Oil Tank 200L
Feed Door 70x55cm
Chimney 5Meter
Chimney Type Stainless Steel
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Gross Weight 6500kg(with 20′ ISO container)
External Dimensions 230x130x155cm(Incinerator)
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Spare Parts
