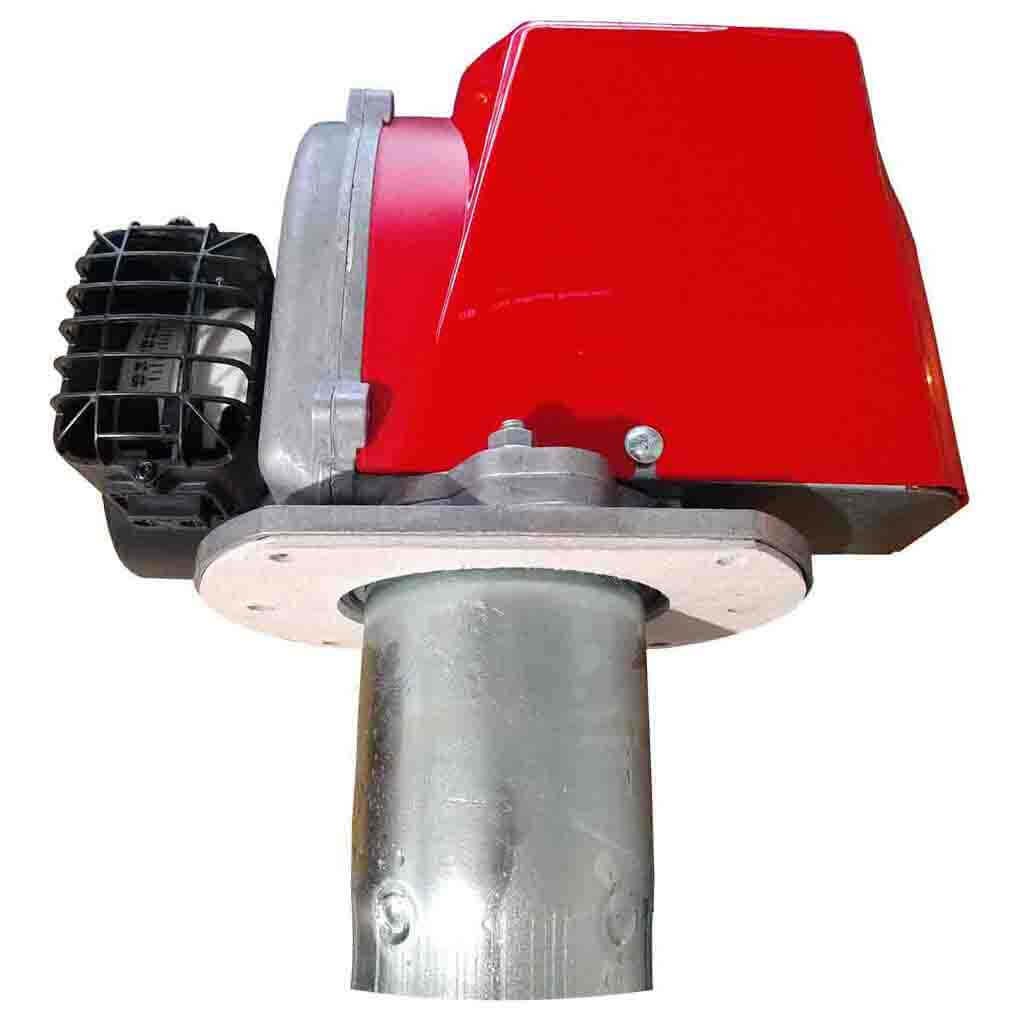

Ecoflam Burner Model MAX12

Redefine your heating solutions with the Ecoflam Burner, offering four models: MAX 12, MAX 15, MAX 20, and MAX 30. These deliver peak thermal power ranging from 163,800 kcal/h (or 190 kW) to 275,400 kcal/h (or 319 kW), with a minimum thermal power between 63,240 kcal/h (or 73 kW) and 94,860 kcal/h (or 110 kW) respectively. The MAX models are designed for a maximum flowrate of light oil, with the MAX 12 accommodating up to 16 kg/h, the MAX 15 accomodating 20 kg/h, and both MAX 20 and MAX 30 supporting up to 27 kg/h. Each model ensures a low minimum flowrate of light oil between 6.2 kg/h and 9.3 kg/h, which guarantees efficiency and fuel conservation. Equipped with a feeding power of 50 Hz and 230V, the motors of the MAX models, starting from MAX 12, have power ratings of 130W, increasing to 200W for the MAX 15, MAX 20, and MAX 30.Each model runs at a consistent speed of 2,800 rpm and features an ignition transformer of 15 kV/mA to ensure a quick start and continuous operation. Equipped with an efficient LOA24 control box and a TF974 fuel regulator, the Ecoflam burners are specifically designed to work optimally with light oil offering 10,200 kcal/kg fuel maximum viscosity of 1.5°E at 20°C. Choose the Ecoflam Burner models for a heating solution that combines power, efficiency, and precise control.
