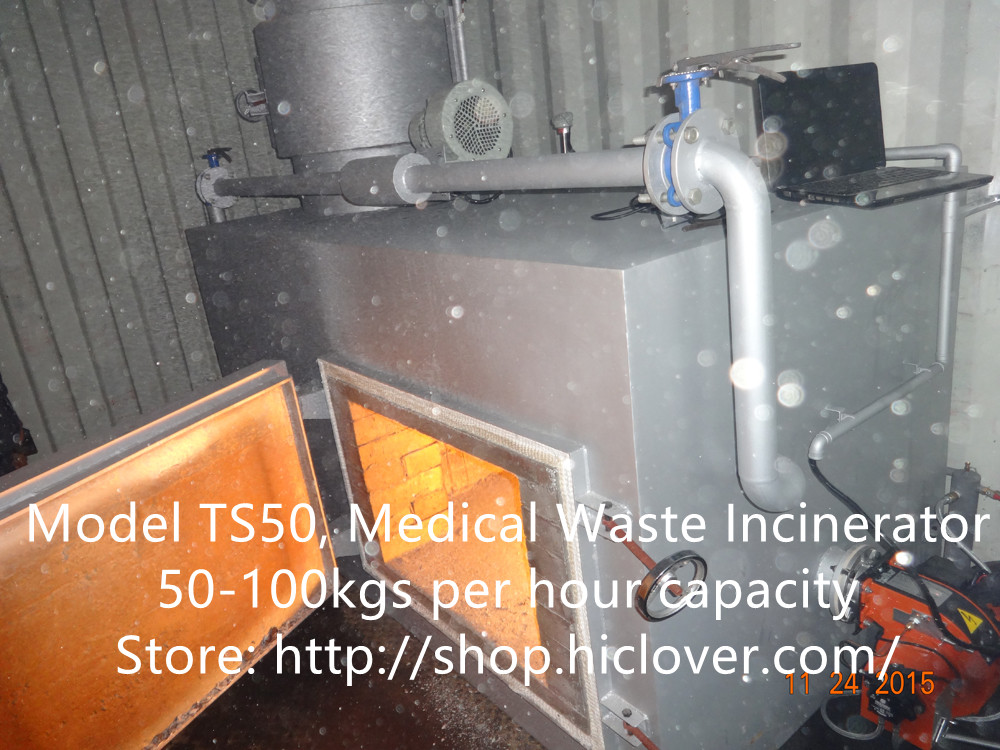

Model: TS50, Medical Waste Incinerator 50-100kgs per hour capacity
Medical Waste Incinerator 50-100kgs per hour capacity
Model: TS50
Burn Rate (Average) 50-100 kg/hour
Feed Capacity(Average) 100-200kg/feeding
Control Mode PLC
Combustion Chamber 560L
Internal Dimensions 100x80x70cm
Secondary Chamber 280L
Smoke Filter Chamber Yes
Feed Mode Manual
Voltage 220V
Power 0.7Kw
Oil Consumption (kg/hour) 16
Temperature Monitor Yes
Temperature Protection Yes
Oil Tank 200L
Feed Door 70x55cm
Chimney 5Meter
Chimney Type Stainless Steel
1st. Chamber Temperature 800℃–1000℃
2nd. Chamber Temperature 1000℃-1200℃
Residency Time 2.0 Sec.
Gross Weight 4500kg
External Dimensions 230x130x155cm
