50-100-150-200 Kgs per Hour Solid Waste Incinerator on Sale
21
Apr
Apr

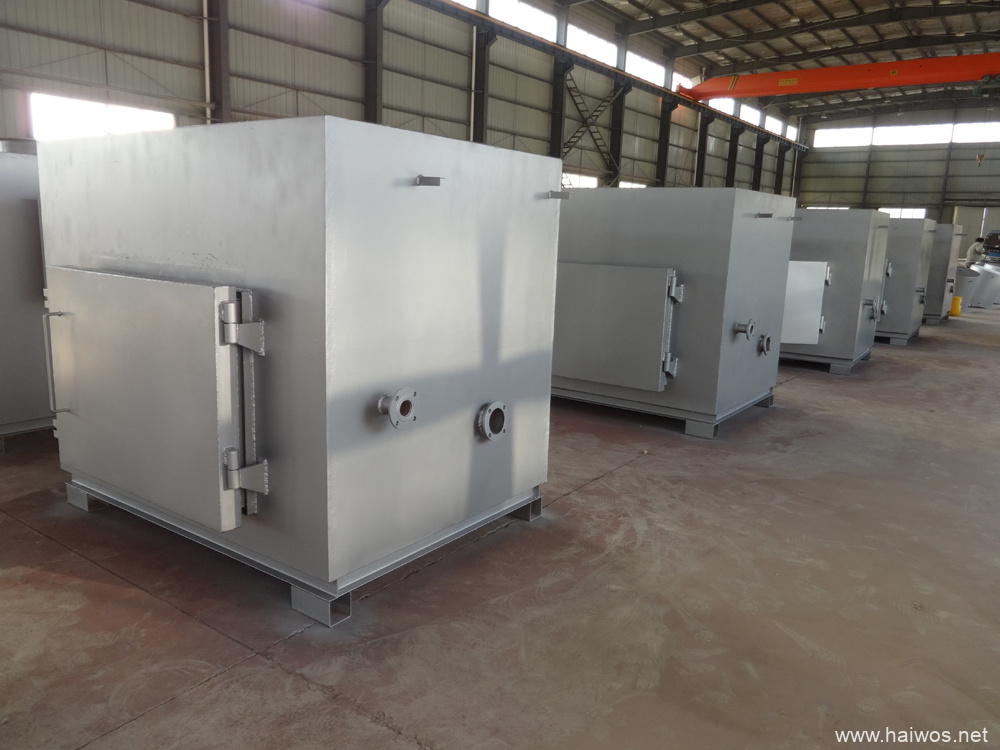

Waste Incinerator Model TS150 PLC, Review
This version is small-scale waste incineration devices for little waste output.
Construction is dual/double combustion chamber with 02 sets oil burner, batch load
incineration equipment. Waste feed chamber is 1570Liters (1.57m3 , TS150 PLC).
Primary & Secondary combustion chambers and smoke filter chamber.
Batch load on the bottom of chamber. Incinerator PLC panel control suit for local operation.
Primary Combustion Chamber:
※Main Feature:
— Double Combustion Chamber
— Double Italy Burner
— Smoke Filter included
–Burning Rate: 50-200kgs per hour optional
–Primary Combustion Chamber: 1.57M3(1570Liters)
— Incinerator Mainbody steel: 8mm thickness
— Paint for outside face: 800°C Rate
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Spare Parts
Incinerator Equipment
Containerized Mobile Incinerator 50-100kgs per hour Model CA50
Incinerator Personal protective equipment
Incinerator Personal protective equipment
Incinerator Spare Parts
Incinerator Personal protective equipment
Incinerator Personal protective equipment
Incinerator Personal protective equipment
—Chamber Material: High Alumina Fire Brick Wall, 1750℃ Rate
— Idea for campsite average or below 600 people
— Chimney: 10 Meters, Stainless steel
Feeding door primary chamber:
Items/Model
TS150( PLC)
Principle
Waste Incineration Treatment
Burn Rate
Average 150 kg/hour
*( 50/100/200kgs/ hr optional)
Feed Capacity
Average 750kg/feeding
Control Setting
PLC( Programmable Logic Controller Burner)
Text Steel
8mm thickness
Chamber Material
High Alumina Fire Block Wall, 1750 ℃ Price
Paint for outdoors face
800 ° C Price
Burning Chamber
1570L
Internal Dimensions
150x100x105cm
Second Chamber
750L
Smoke Filter Chamber
Yes
Feed Mode
Manual
Voltage
210/230V 50/60Hz
Power
0.9 Kw
Oil Intake (kg/hour)
Typical 20.4-28.0( D.O)
Gas Intake (m3/hour)
***
Temperature Screen
Digital Show
Temperature Level Security
Yes
Oil Container
300L
Feed Door
80x60cm
Chimney
10Meter
Smokeshaft Type
Stainless-steel
1st. Chamber Temperature Level
800 ℃–– -1000 ℃
second. Chamber Temperature Level
1000 ℃ -1200 ℃
Residency Time
2.0 Sec.
Gross Weight
8500kg
Exterior Dimensions
300x160x280cm( without smokeshaft)
